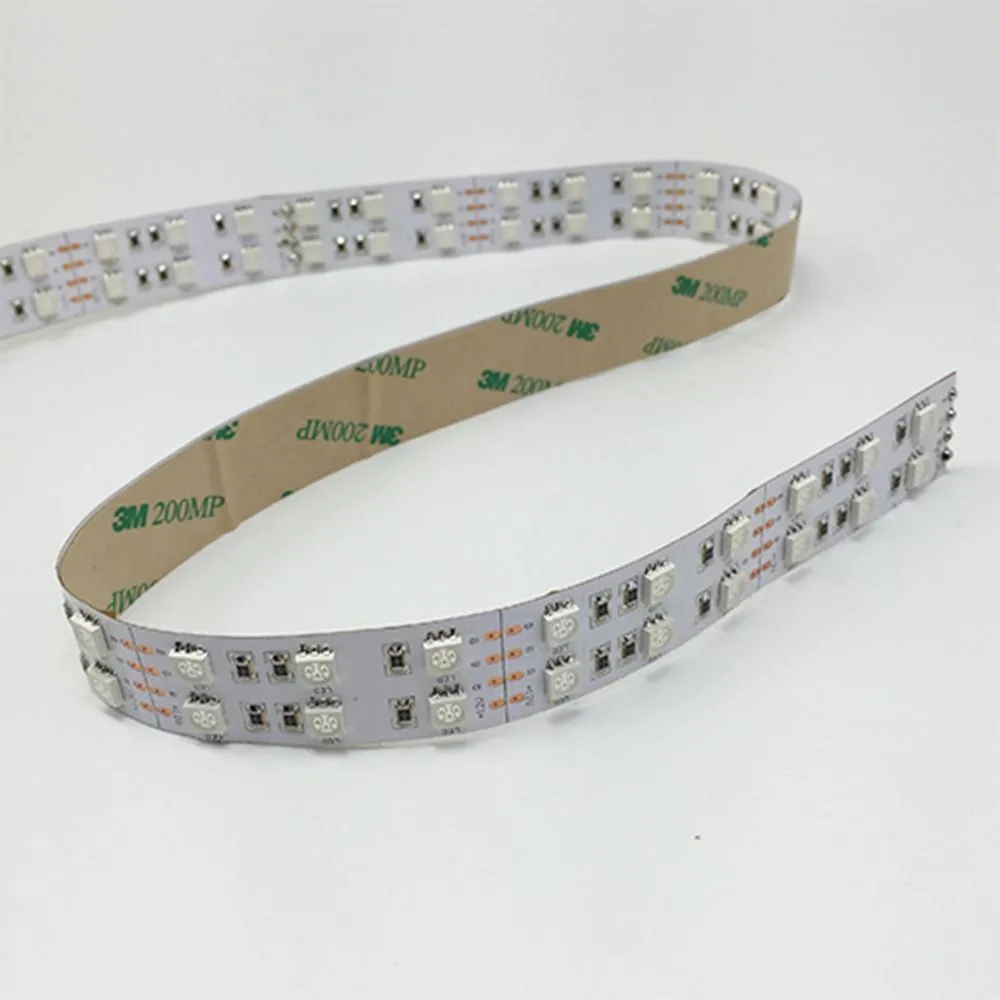

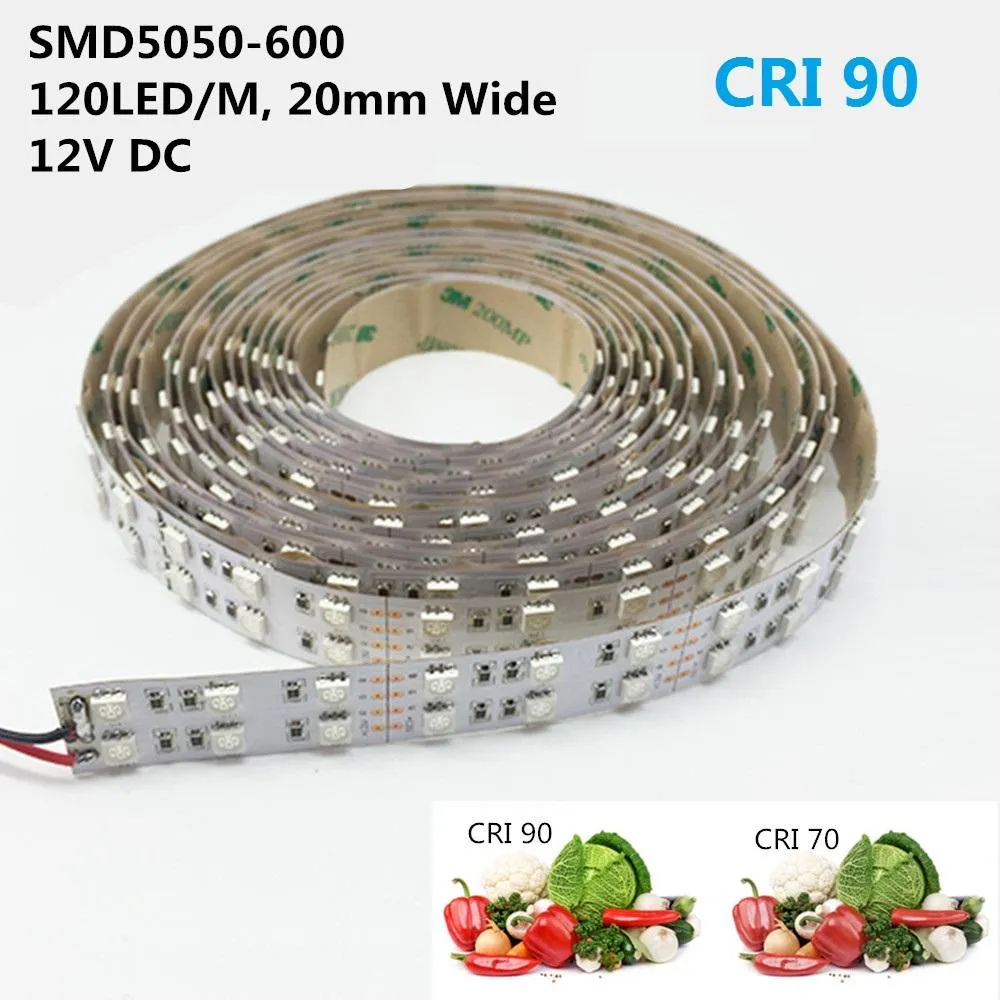

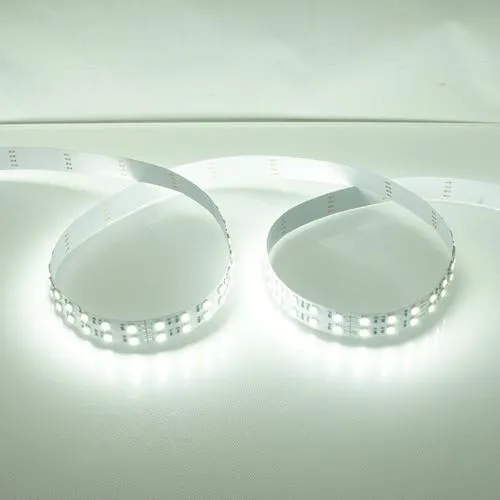

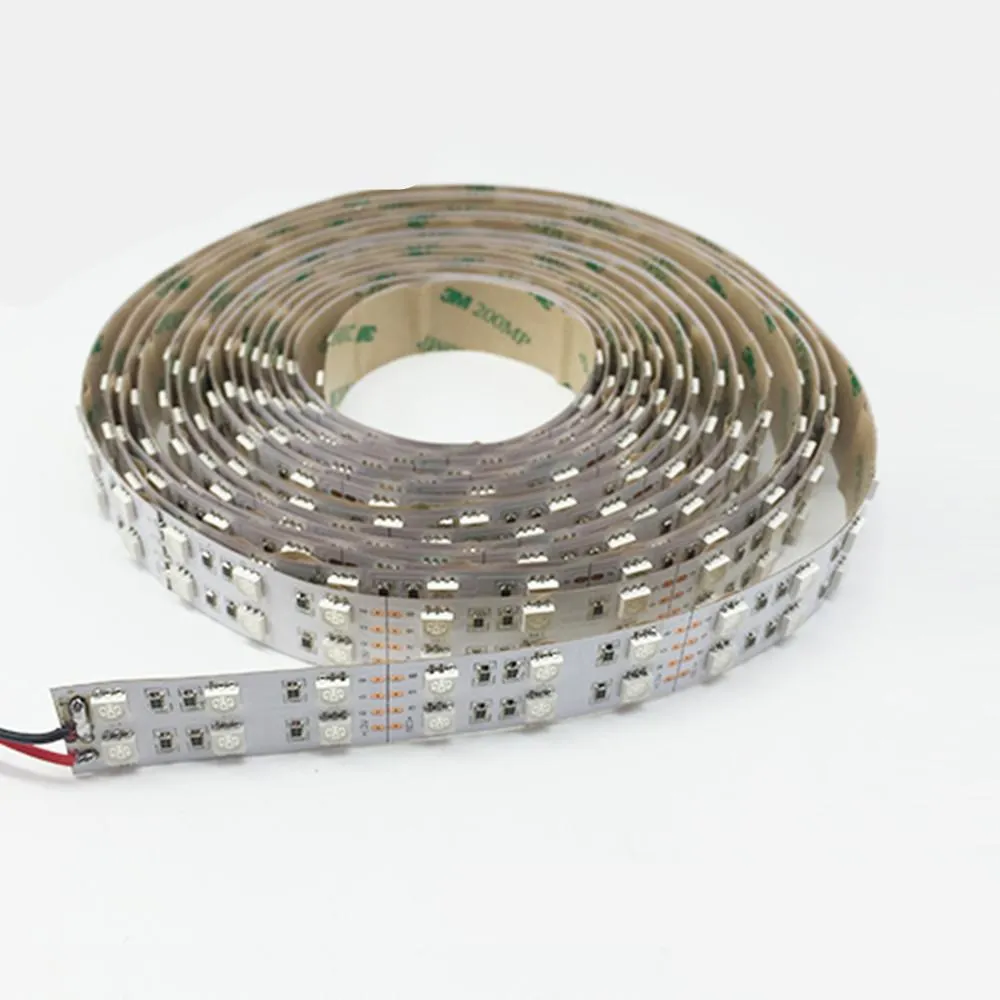

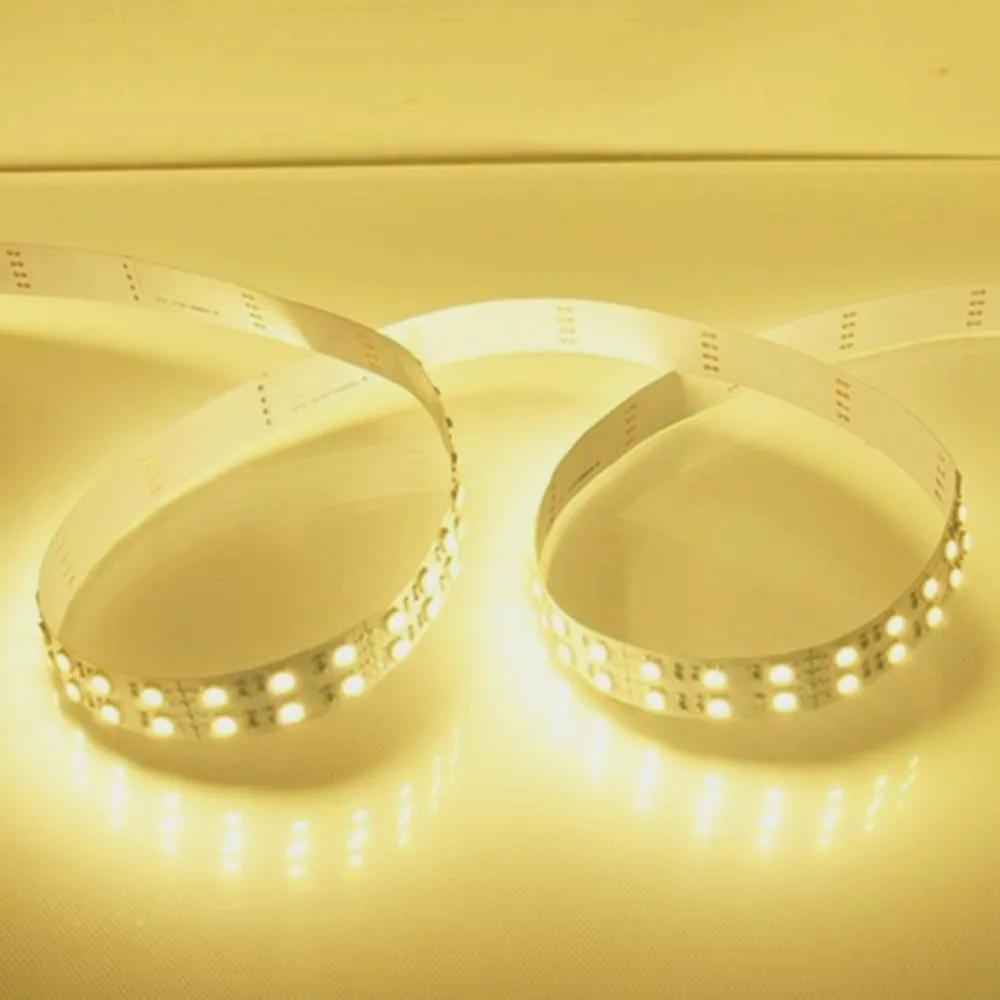

High CRI >90 DC 12V Dimmable SMD5050-600 Double Row Flexible LED Strips 120 LEDs Per Meter 15mm Width 1800lm Per Meter
High-End Product CRI90 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Medium Product CRI80 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Low-End Product CRI60 Single-Sided PCB, copper wire iron support LED component, less brightness, economical for temperary project.
| Technical Specification |
| Wattage | 28.8W/Meter | Voltage | 12V DC |
| Beam Angle | 120° | Dimming | Yes |

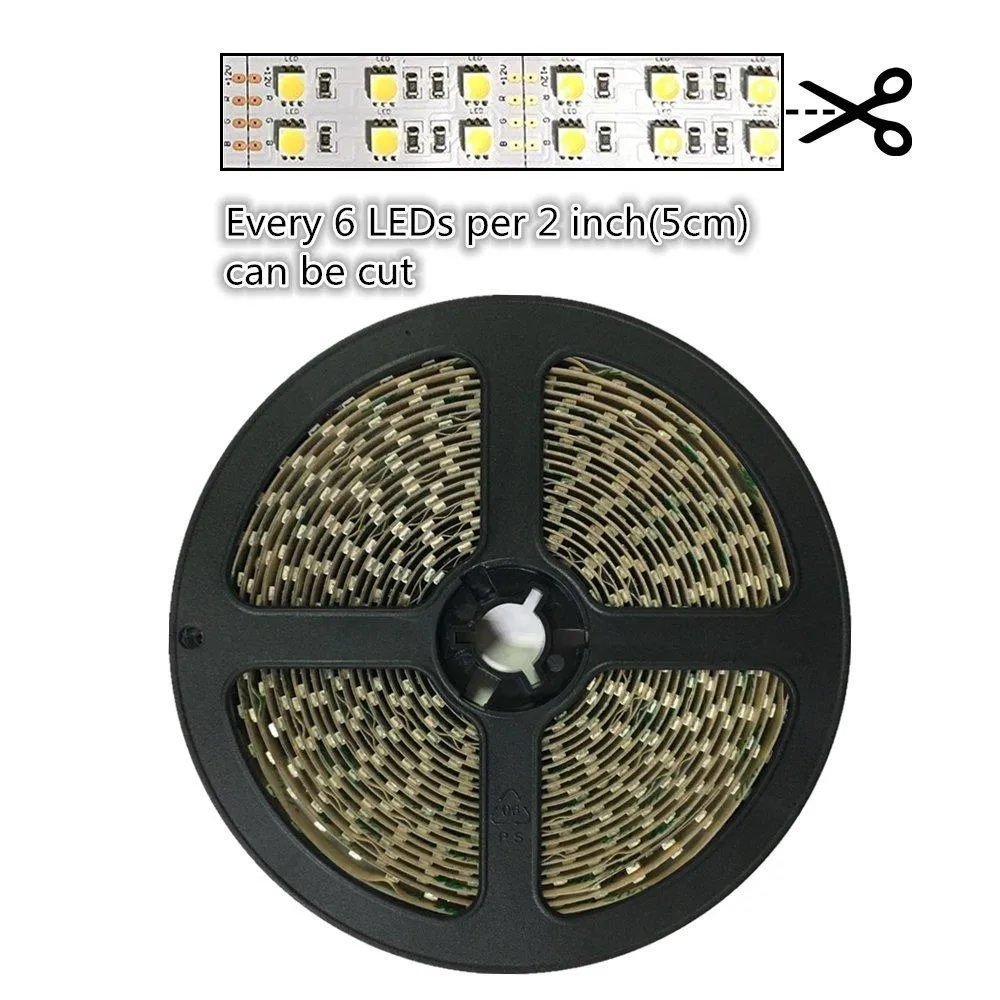

| LED Type | SMD5050 | Strip Section | 6LED per 2inch |
| WxH | 15x2(mm) | LED QTY.: | 120LED/Meter |
| Length Available | 0.5 to 5 Meter | Available Color | Pure White(5500-6500K), Warm White(3000-3500K), Warm White(2700K), Natural White(4000-4500K) |
| Protection Grade | Non-waterproof, IP65, IP67 | PCB Background | White |
| Other Features |
| Item | CRI90 DC12V SMD5050-600 Tri-Chip Double Row Flexible LED Strips 120LEDs 28.8W Per Meter |
| Weight | 0.35kgs/roll for non-waterproof; 0.5kgs/roll for IP65/IP67 |
| PCB Backing | Adhesive backing for Non-waterproof and waterproof IP65/IP67 |
| Lead | Single color strip has two contacts(V ,V-) and is Polarity Sensitive. |
| Pre-wiring | 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip |
Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)
Waterproof Strip Dimension
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
